PolyMide™ PA6-GF

PolyMide™ is a family of Nylon/polyamide based filaments. Produced with Polymaker’s Warp-Free™ technology, PolyMide™ filaments deliver engineering properties intrinsic to Nylon and ease of printing.

PolyMide™ PA6-GF is a glass fiber reinforced PA6 (Nylon 6) filament. The material exhibits excellent thermal and mechanical properties without sacrificing the layer adhesion.

We highly recommend to use a wear resistant nozzle, to print with the PolyBox™ and to keep it at dry conditions (relative humidity of 15% or less) at all times to maintain the best printing results.

FEATURES

Excellent Stiffness & Toughness - Featuring a tensile modulus of 4.4 GPA on the XY axis and 3.3 GPA on the Z axis, PolyMide™ PA6-GF is well suited for high performance industrial and engineering applications. PolyMide™ PA6-GF combines excellent stiffness and toughness.

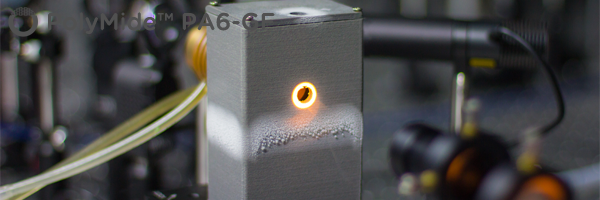

Excellent Heat Resistance - Featuring a heat deflection temperature of up to 191°C, PolyMide™ PA6-GF can be used to print parts working in a wide temperature range and has been utilized to create custom lab equipment working at temperatures as low as -190°C.

Outstanding Layer Adhesion - All other brands of fiber reinforced material show a decrease in z-axis layer adhesion when compared with their non-fiber reinforced Nylons, producing a part that is only stronger on the X-Y axis but detrimental to the Z axis. Polymakers new technology in PolyMide™ PA6-GF not only solves this problem but actually increases Z axis tensile strength creating more isotropic parts that are strong in every direction.

Wear Resistant and strong - Parts printed in PolyMide™ PA6-GF display excellent strength and wear resistant properties.

Improved Printability – Unlike many other Nylon filaments, PolyMide™ PA6-GF is extremely easy to work with, exhibiting excellent dimensional stability. It is compatible with most filament-based 3D printers with no heated bed or chamber required!

Uncompromised Quality - Polymakers leading quality control process and rigorous in-house testing ensure reliable printing and consistency across spools and batches.

Find a reseller

Technology

PolyMide™ PA6-GF Features Fiber Adhesion™ and Warp-Free™ technology

Warp-Free™ - Warp-Free™ technology enables the production of Nylon-based filaments that can be 3D printed with excellent dimensional stability and near-zero warpage. This is achieved by the fine control of microstructure and crystallization behaviour of Nylon, which enables the material to fully release the internal stress before solidification. The Warp-Free™ technology in PolyMide™ PA6-GF is designed to work best with minimal bed temperatures.

Fiber Adhesion™ - Fiber Adhesion™ technology improves the layer adhesion of fiber reinforced materials, by optimizing the surface chemistry of the fibers to achieve better dispersion and bonding to the matrix. This results in better strength along the Z-axis and reduced mechanical anisotropy.

Print Settings

Nozzle Temperature:
280˚C – 300˚C *

Printing Speed:
60mm/s

Bed Temperature:
25˚C – 50˚C (Do NOT exceed 50 ˚C)

Bed Surface:
almost any surface with a thin coat of PVA glue

Cooling Fan:
OFF

Note: Based on 0.4 mm nozzle and Simplify 3D v.4.0. Printing conditions may vary with different printers and nozzle diameters
* We highly recommend to use a wear resistant nozzle

Mechanical Properties

Mechanical Properties (DRY STATE)

Young’s modulus (X-Y): 4431 ± 184 (MPa)

Young’s modulus (Z): 3330 ± 145 (MPa)

Tensile strength (X-Y): 84.5 ± 2.1 (MPa)

Tensile strength (Z): 61.4 ± 3.9 (MPa)

Bending strength (X-Y): 136.4 ± 1.6 (MPa)

Charpy impact strength (X-Y): 16.5 ± 0.5 (kJ/m2)

Mechanical Properties (MOISTURE CONDITIONED)

Young’s modulus (X-Y): 2050.3 ± 243.6 (MPa)

Young’s modulus (Z): 2593 ± 192 (MPa)

Tensile strength (X-Y): 50.8 ± 4.9 (MPa)

Tensile strength (Z): 44.4 ± 4.7 (MPa)

Bending strength (X-Y): 65.1 ± 2.2 (MPa)

Charpy impact strength (X-Y): 21.2 ± 1.1 (kJ/m2)

Thermal Properties

Heat Deflection Temperature (ISO 75 0.45 MPa): 191 ˚C

Heat Deflection Temperature (ISO 75 1.8 MPa): 124 ˚C

Melting Temperature: 215 °C

Notes

Drying Settings:
80˚C for 12h

Recommended Support Materials:
PolyDissolve™ S1

Other:
To ensure a the best heat resistance and mechanical strength of your printed part it is recommended to anneal your PolyMide™ PA6-GF 3d printed model.
Annealing settings: 90˚C for 2h

Technical Data Sheets:
Contact your local reseller

Safety Data Sheets:
Contact your local reseller
