Polymaker PolyMide CoPA Filament

PolyMide™ CoPA

PolyMide™ is a family of Nylon/polyamide based filaments. Produced with Polymaker’s Warp-Free™ technology, PolyMide™ filaments deliver engineering properties intrinsic to Nylon and ease of printing.

PolyMide™ CoPA is based on a copolymer of Nylon 6 and Nylon 6,6. The filament combines excellent strength, toughness, and heat resistance of up to 180˚C.

We recommend that this material be used with the PolyBox™ to keep it at dry conditions (relative humidity of 15% or less) at all times to maintain the best printing results.

FEATURES

Excellent Toughness - The outstanding mechanical strength and toughness makes PolyMide™ CoPA an excellent choice for engineering based applications.

Excellent Heat Resistance - With a high softening temperature of up to 180 °C, PolyMide™ CoPA is one of the most heat resistant 3D printing materials on the market.

Improved Printability – Unlike many other Nylon filaments, PolyMide™ CoPA is extremely easy to work with, exhibiting excellent dimensional stability when compared to other nylon filaments. It is compatible with most filament-based 3D printers with no heated bed or chamber required!

Wear Resistant - Parts printed in PolyMide™ CoPA display excellent wear resistance.

Uncompromised Quality - Polymakers leading quality control process and rigorous in-house testing ensure reliable printing and consistency across spools and batches.

Find a reseller

Technologies

PolyMide™ CoPA features Polymaker's Warp-Free™ technology:

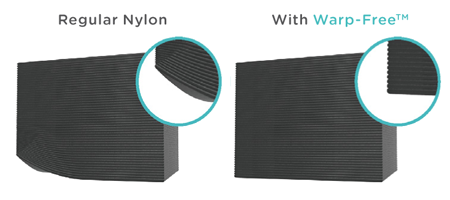

Warp-Free™ - Warp-Free™ technology enables the production of Nylon-based filaments that can be 3D printed with excellent dimensional stability and near-zero warpage. This is achieved by the fine control of microstructure and crystallization behaviour of Nylon, which enables the material to fully release the internal stress before solidification. The Warp-Free™ technology in PolyMide™ CoPA is designed to work best with minimal bed temperatures.

Print Settings

Nozzle Temperature:
250˚C – 270˚C


Printing Speed:
30mm/s – 50mm/s


Bed Temperature:
25˚C – 70˚C (Best results with LOW bed temperatures)


Bed Surface:
Glass with glue


Cooling Fan:
OFF


Note: Based on 0.4 mm nozzle and Simplify 3D v.3.1. Printing conditions may vary with different printers and nozzle diameters

Mechanical Properties

Young’s Modulus:
2223 ± 199 Mpa


Tensile Strength:
66.2 ± 0.9 Mpa


Bending Strength:
97.0 ± 1.1 Mpa


Impact Strength:
9.6 ± 1.4 kJ/m2

Compare

Thermal Properties

Glass Transition Temperature:
67˚C


Vicat Softening Temperature:
180˚C


Melting Temperature:
190˚C

Compare

Notes

Drying Settings:
80˚C for 12h


Recommended Support Materials:
PolyDissolve™ S1


Other:
It is highly recommended to use the PolyBox™ when printing with PolyMide™ CoPA and to store it in the resealable bag.

To ensure a good heat resistance of your printed part it is recommended to anneal your PolyMide™ CoPA 3d printed model.

Annealing settings: 70˚C for 2h
Different annealing settings may be better for some geometries.


Technical Data Sheets:
Contact your local reseller


Safety Data Sheets:
Contact your local reseller
