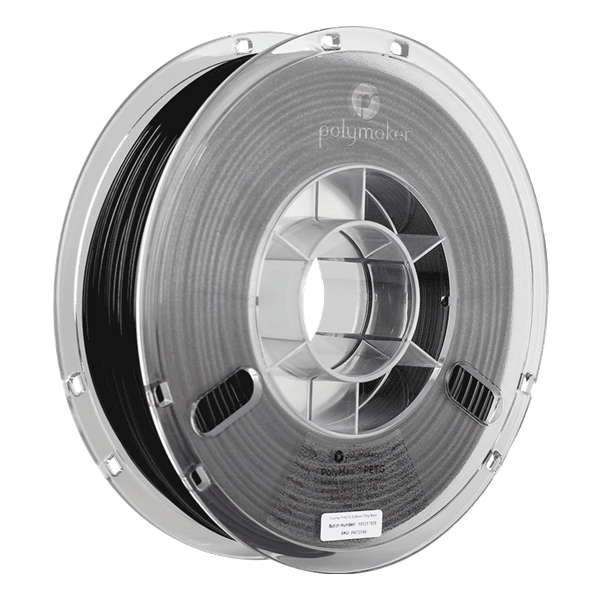

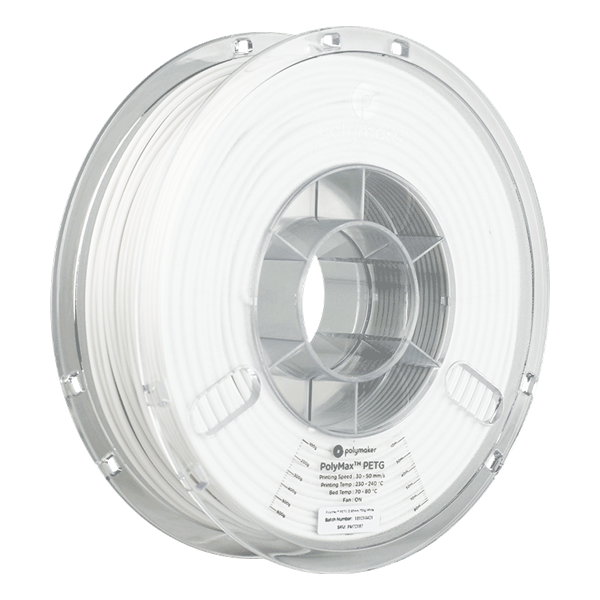

Polymaker PolyMax PETG Filament

PolyMax™ PETG

PolyMax™ is a family of advanced 3D printing filaments produced with Polymaker’s Nano-reinforcement technology, to deliver exceptional mechanical properties and printing quality.

PolyMax™ PETG offers better mechanical properties than any other regular PETG making it a good candidate for a wide range of applications.

FEATURES

Superior Toughness - PolyMax™ PETG is a nano-reinforced PETG filament exhibiting superior fracture toughness when compared to regular PETG and even ABS!

Heat Resistant – PolyMax™ PETG features a heat resistance up to 80°C, suitable for a wide range of practical applications.

Ease of Post-Processing - PolyMax™ PETG offers improved post-processing capabilities when compared to PolyMax™ PLA. Easily sand your print to remove layer-lines and achieve a beautiful smooth surface.

Easy-to-print - The great mechanical performance of PolyMax™ PETG is achieved with no compromise in printing quality. PolyMax™ PETG prints easily on a wide range of machines with minimal printing requirements and excellent dimensional stability.

Uncompromised Quality - Polymakers leading quality control process and rigorous in-house testing, ensure reliable printing and consistency across spools and batches.

Find a reseller

Technology

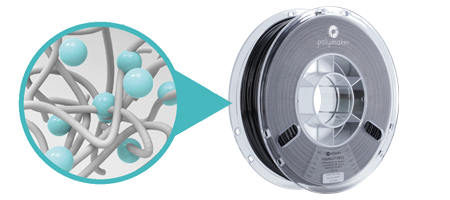

PolyMax™ PETG features Polymaker's Nano-reinforcement technology:

Nano-reinforcement - Nano-reinforcement technology is applied to produce filaments with excellent mechanical properties and printing quality. It dramatically improves the toughness of the material by increasing its impact resistance.

PolyMax PETG Nano-reinforced

Print Settings

Nozzle Temperature:
230˚C – 240˚C

Printing Speed:
30mm/s – 50mm/s

Bed Temperature:
70˚C – 80˚C

Bed Surface:
BuildTak®, PEI sheet

Cooling Fan:
LOW for better surface quality
OFF for better strength.

Note: Based on 0.4 mm nozzle and Simplify 3D v.3.1. Printing conditions may vary with different printers and nozzle diameters

Mechanical Properties

Young’s Modulus:
1523 ± 50 (MPa)

Tensile Strength:
31.7 ± 0.1 (MPa)

Bending Strength:
58.3 ± 4 (MPa)

Charpy Impact Strength:
9.7 ± 2.6 (kJ/m2)

Compare

Thermal Properties

Glass Transition Temperature:
79 (°C)

Vicat Softening Temperature:
82 (˚C)

Compare

Notes

Drying Settings:
70˚C for 8h

Recommended Support Materials:
PolyDissolve™ S1 generally supports the model depending on its geometry

Other:
When printing large parts with PolyMax™ PETG an enclosure can be beneficial.

It is recommended to use the PolyBox™ when printing with PolyMax™ PETG and to store it in the resealable bag.

Technical Data Sheets:
Contact your local reseller

Safety Data Sheets:
Contact your local reseller
